166L HYBRID FRIDGE / FREEZER
Storage that adapts to your life
Switch the full cabinet between refrigerator and freezer operation as your storage needs change.
Hybrid Fridge Freezer Right Hinge
166L Hybrid Fridge Freezer Right Hinge White
CSH166NW5

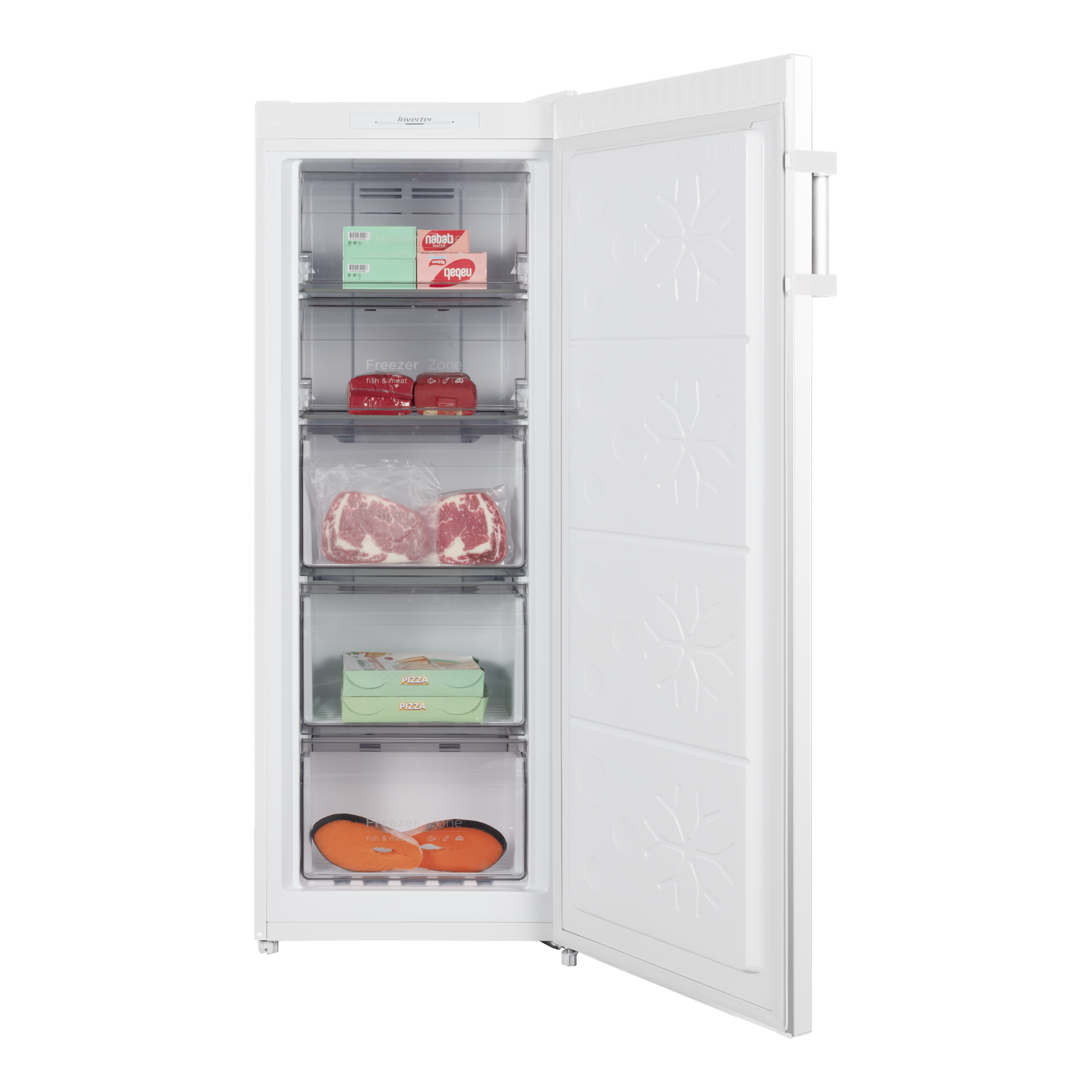

A flexible 166L hybrid appliance that switches between refrigerator and freezer modes as your storage needs change. Six temperature modes, Total Frost Free and three generous drawers make it easy to organise everything from fresh produce to frozen favourites.
- 166LCapacity
- 4 StarFreezer energy rating
- 5 StarRefrigerator energy rating
- WhiteFinish
Dimensions
- Width547 mm
- Height1448 mm
- Depth599 mm
Highlights
- 10-year compressor warranty* Long-term compressor cover for added peace of mind (parts only).
- Hybrid Fridge / Freezer Switch the full cabinet to suit your storage.
- Six Temperature Modes Freeze through Cellar, plus Fast Freeze.
- Freezer 4 Star When operating as a freezer.
- Refrigerator 5 Star When operating as a refrigerator.
- Multi Air Flow Balanced cooling throughout.
One cabinet, six ways to store
Choose Freeze, Soft Freeze, Chill, Fridge, Cellar or Fast Freeze from the exterior controls.
- Freeze-16°C to -24°C
- Soft Freeze-3°C to -13°C
- Chill-3°C to 3°C
- Fridge2°C to 8°C
- Cellar5°C to 15°C
- Fast Freeze-32°C
Storage that adapts
Switch the full 166L cabinet between refrigerator and freezer operation.

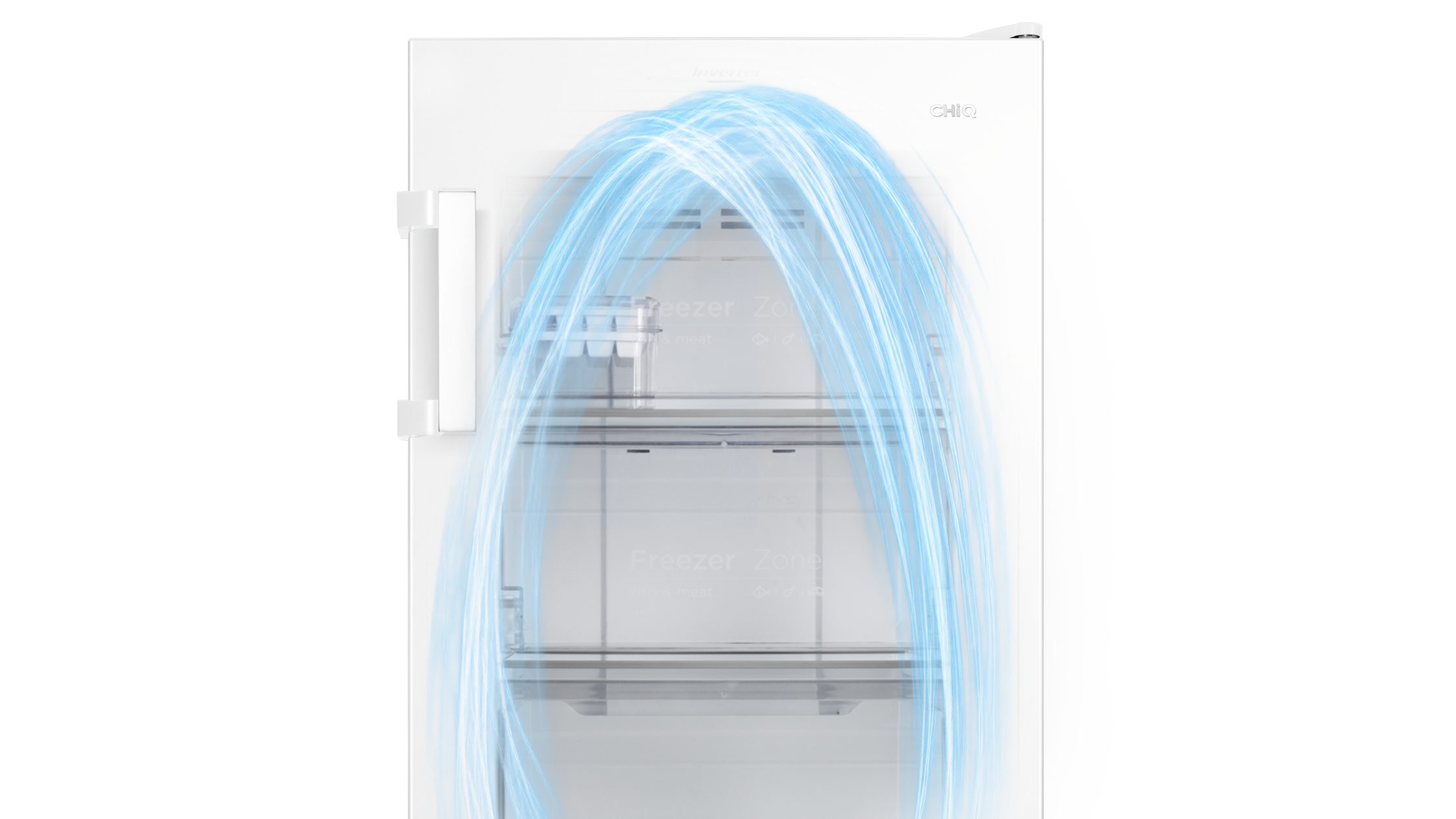

Even cooling from top to bottom
Multi Air Flow distributes chilled air throughout the cabinet.
No manual defrosting
Total Frost Free helps prevent frost build-up.
Simple control from outside
Select the operating mode without opening the door.
Six Temperature ModesChoose the right temperature for frozen food, fresh produce, drinks and more.

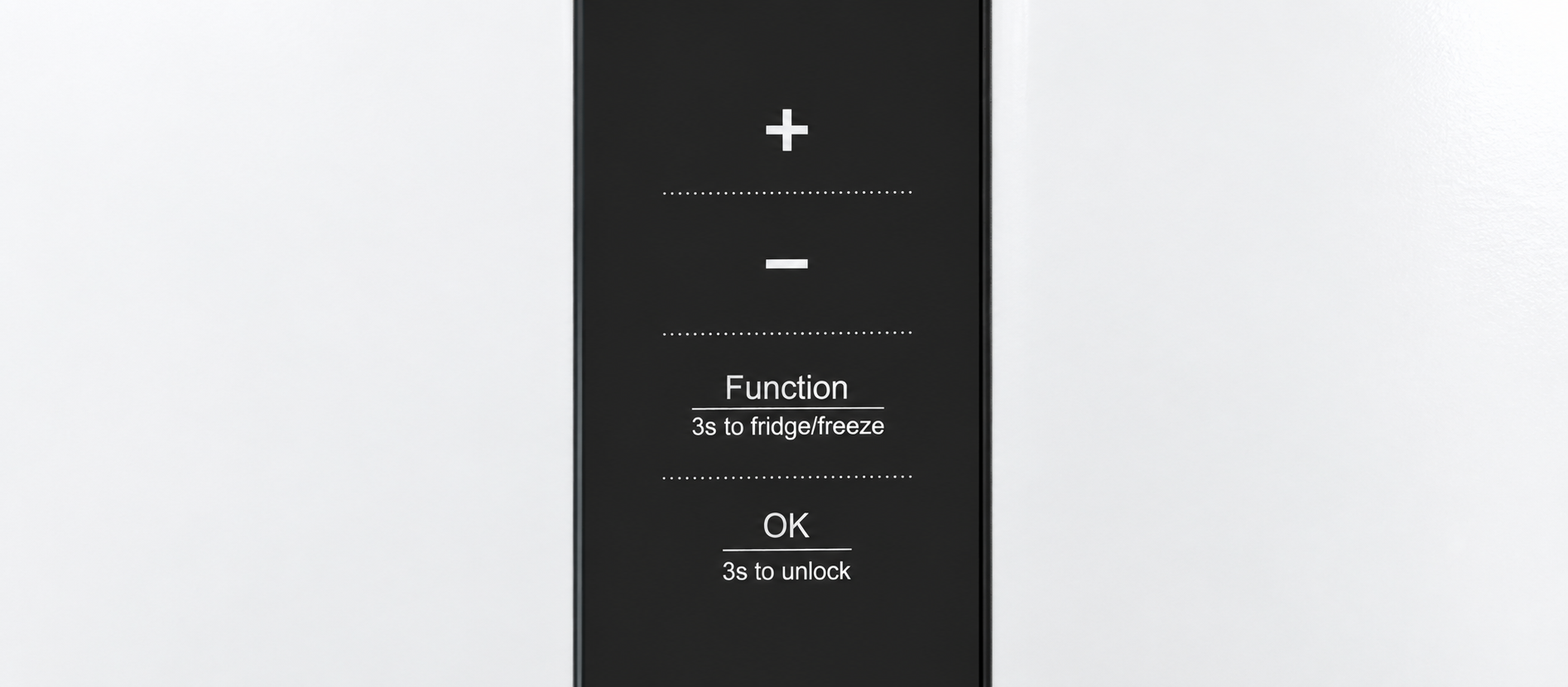

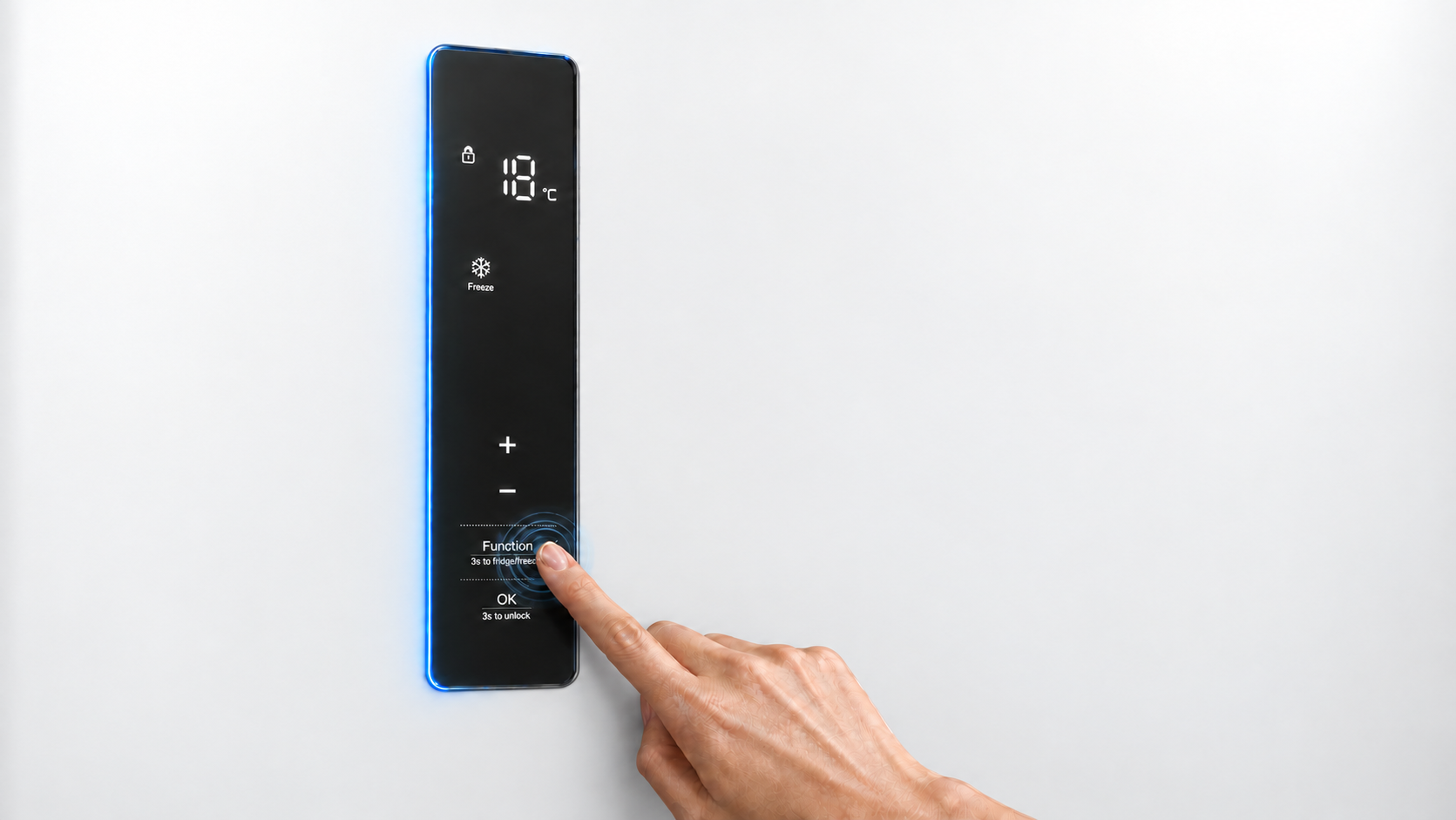

LED Display with ControlChange the temperature and operating mode without opening the door.
Fast response, efficient control
Responsive cooling with inverter efficiency.
Fast Cooling / FreezingQuickly brings newly added food to the right temperature.
10-year compressor warranty*Long-term compressor cover for added peace of mind (parts only).

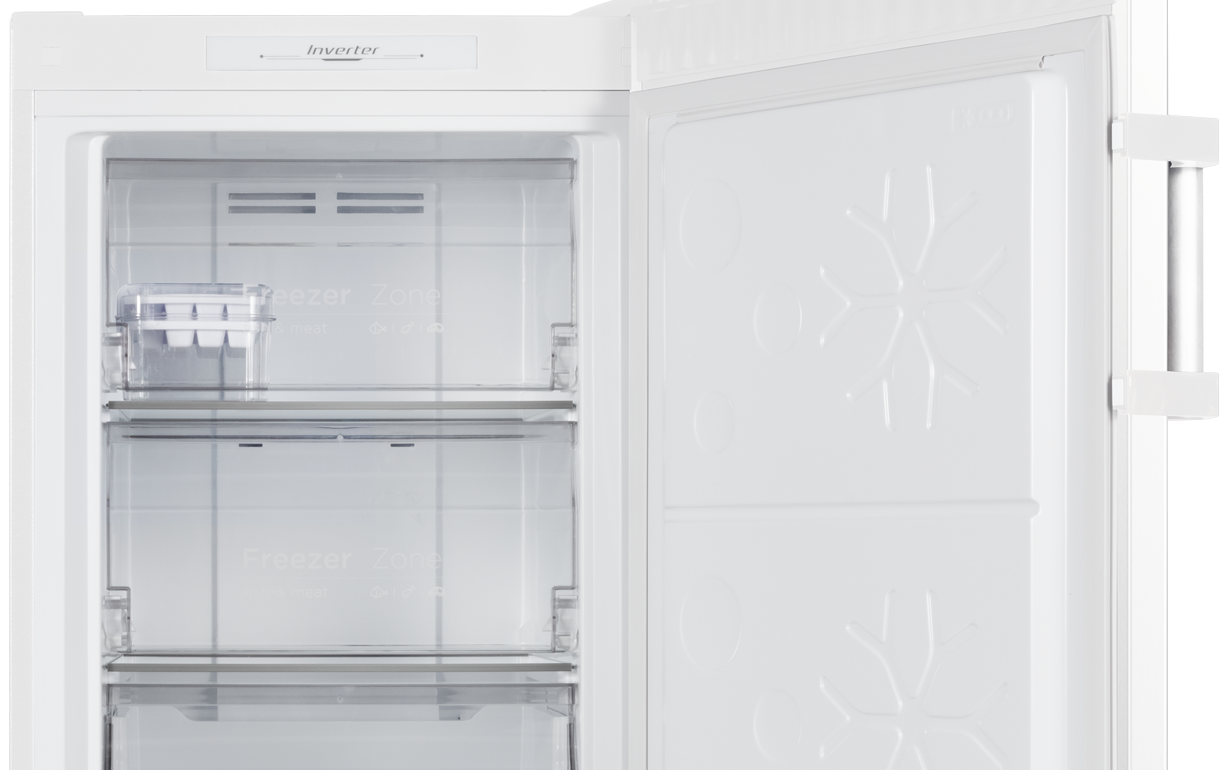

Easier everyday access

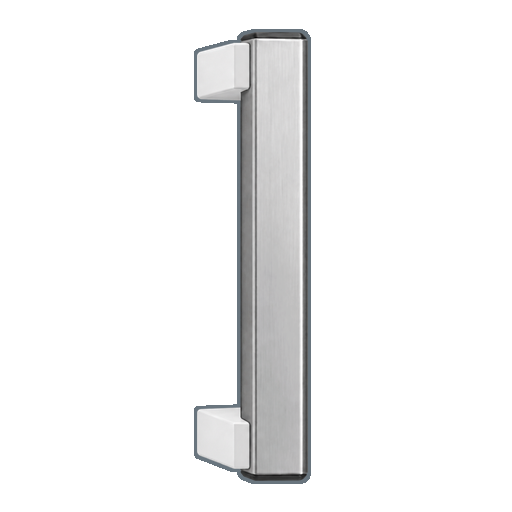

The assisted handle makes opening the door easier.
Assistant HandleReduces the effort needed to open the tall door.
Flexible placement, helpful reminder
Door AlarmAlerts you when the door has been left open.

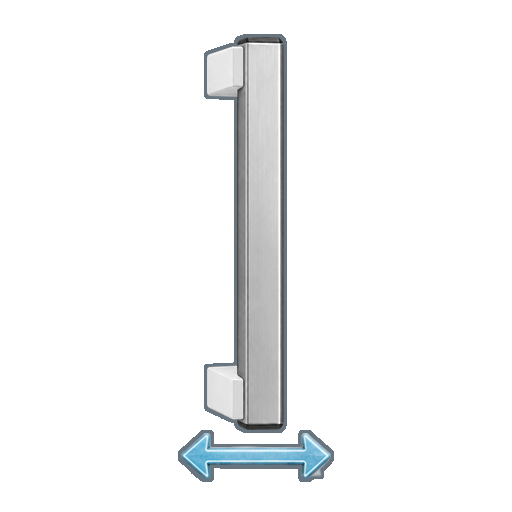

Reversible DoorChoose left- or right-hand opening to suit your space.
Top specs
See all specs- Capacity166L
- Freezer energy rating4 Star
- Refrigerator energy rating5 Star
- FinishWhite
- Dimensions (W x H x D)547 x 1448 x 599 mm
- 166L Switchable Capacity
- Hybrid Fridge / Freezer
- Six Temperature Modes
- Freezer 4 Star
- Refrigerator 5 Star
- Multi Air Flow
Full specifications
Capacity & performance
- Net capacity
- 166L (Refrigerator 166L or Freezer 166L)
- Refrigerant
- R600a
- Energy rating
- Freezer 4 Star / Refrigerator 5 Star
Dimensions & weight
- Product dimensions (W × H × D)
- 547 × 1448 × 599 mm
- Packing dimensions (W × H × D)
- 580 × 1485 × 630 mm
- Net weight
- 46 kg
- Gross weight
- 50 kg

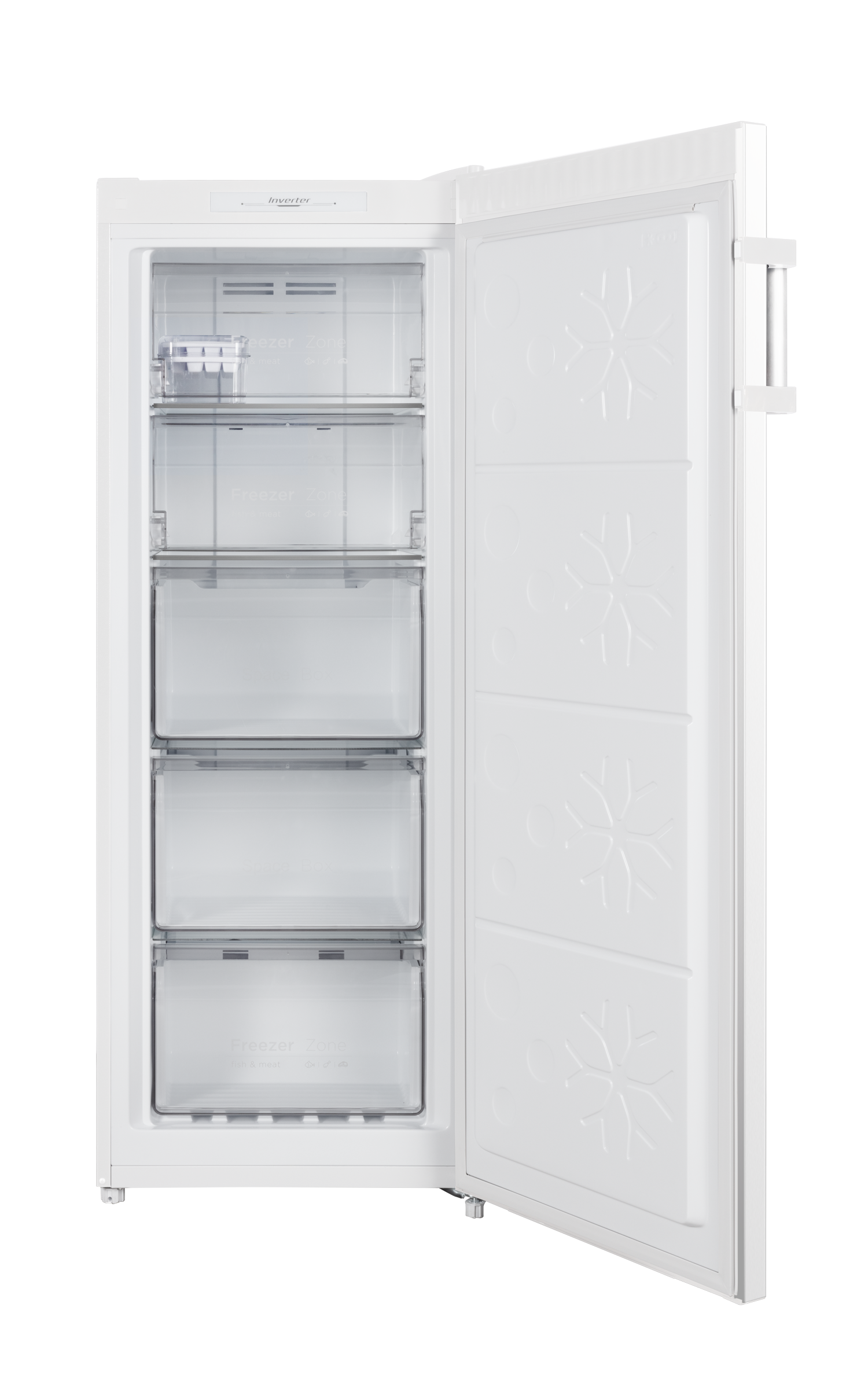

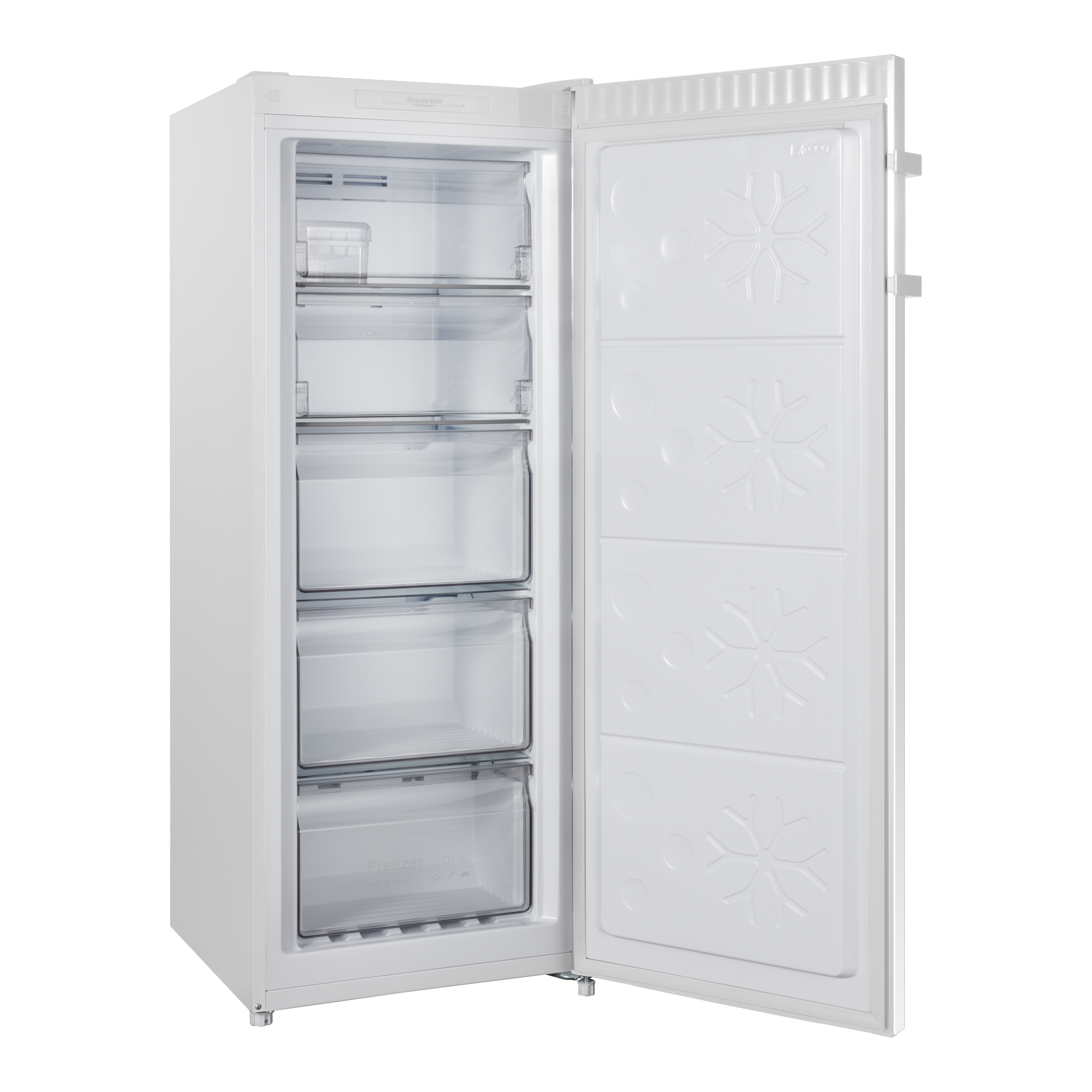

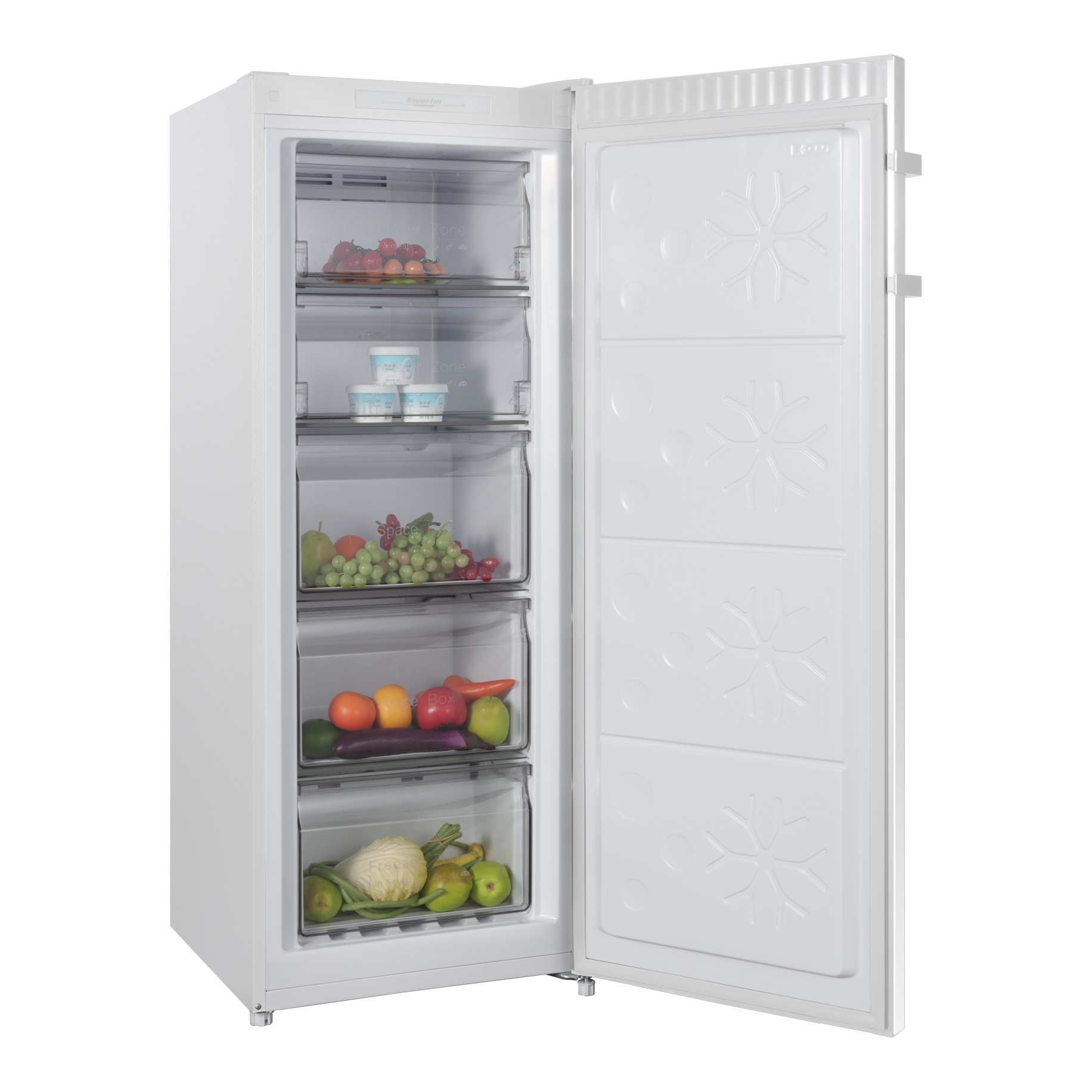

Storage

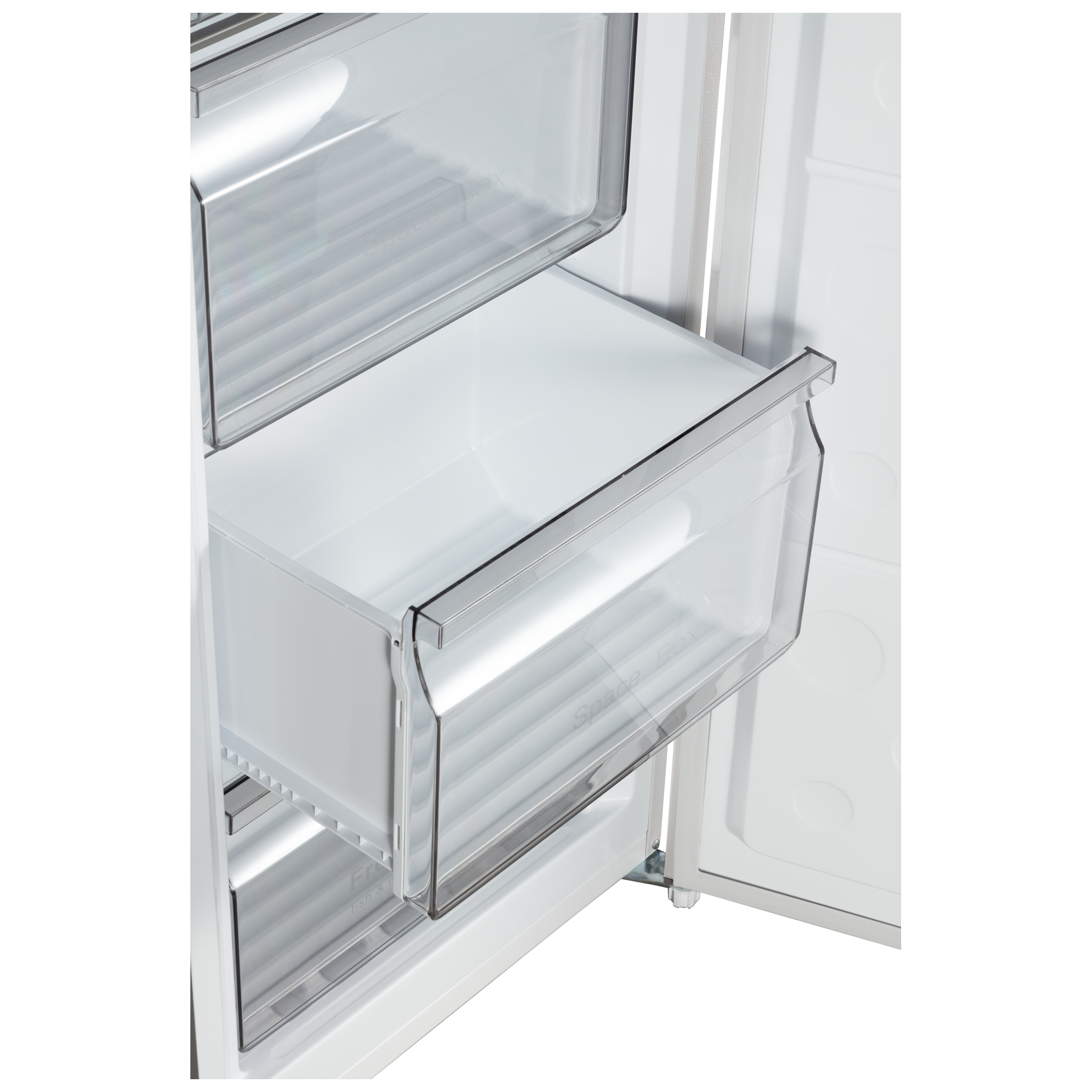

- Drawers
- 3
- Plastic covers
- 2

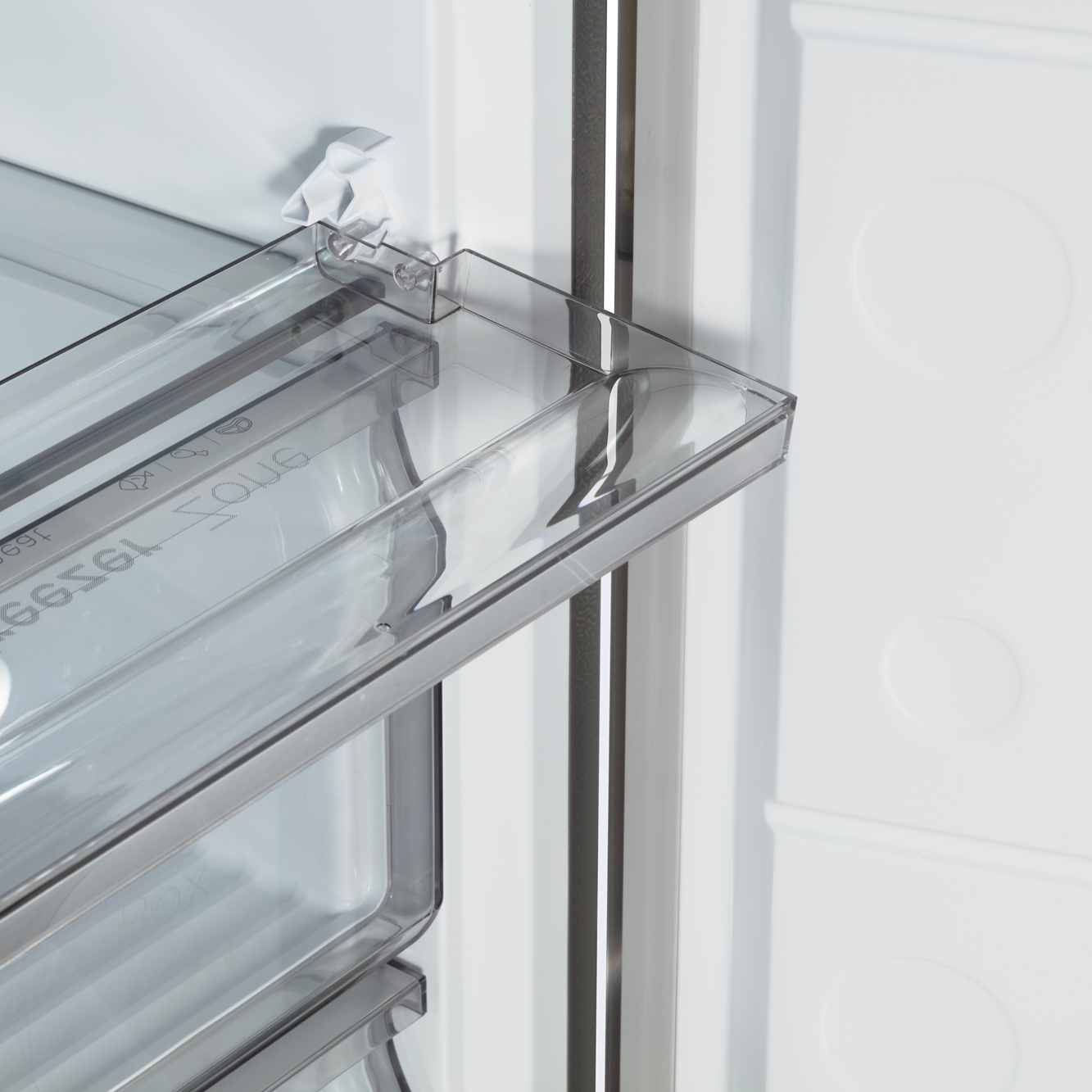

- Glass shelves
- 4
- Easy-to-get ice tray
- 1 easy-to-get ice box (two trays)
Installation
- Door hinge
- Right hinge; reversible to left
- Ventilation clearance
- 5 cm left and right sides; 5 cm rear
- Barcode
- 6937555217031
Downloads
Solutions & tips
Common questions about installing, using and maintaining this product.
How much ventilation space is required?
Allow 5 cm on the left and right sides and 5 cm behind the appliance.
Does this appliance require manual defrosting?
No. Total Frost Free cooling is designed to prevent frost build-up during normal operation.
Can it operate as either a refrigerator or freezer?
Yes. Select the appropriate temperature mode from the electronic controls; refer to the user manual for mode details.
Product support
Notes & disclaimers
Specifications are current at the time of publication and may change without notice. Dimensions are nominal; allow additional clearance for connections, levelling and ventilation.
Retailer prices and availability are set independently by each retailer and may change at any time.
