Bottom Mount Fridge

CHiQ 283L Bottom Mount Fridge Black

CBM280NB5E

A 283L bottom mount fridge that places everyday fresh food at a convenient height. Total Frost Free, Multi Air Flow and an easy-to-get ice box deliver practical, efficient storage for busy households.
  • 283LCapacity
  • 5.5 StarEnergy rating
  • BlackFinish
Warranty registration

Dimensions

  • Width595 mm
  • Height1520 mm
  • Depth671 mm

Highlights

  • 283L CapacityFlexible family storage
  • 5.5 Star Energy RatingEfficient refrigeration
  • Bottom Mount DesignFresh food at a convenient height
  • Total Frost FreeNo manual defrosting
  • Multi Air FlowEven cooling throughout
  • Easy-to-get Ice BoxIce within easy reach

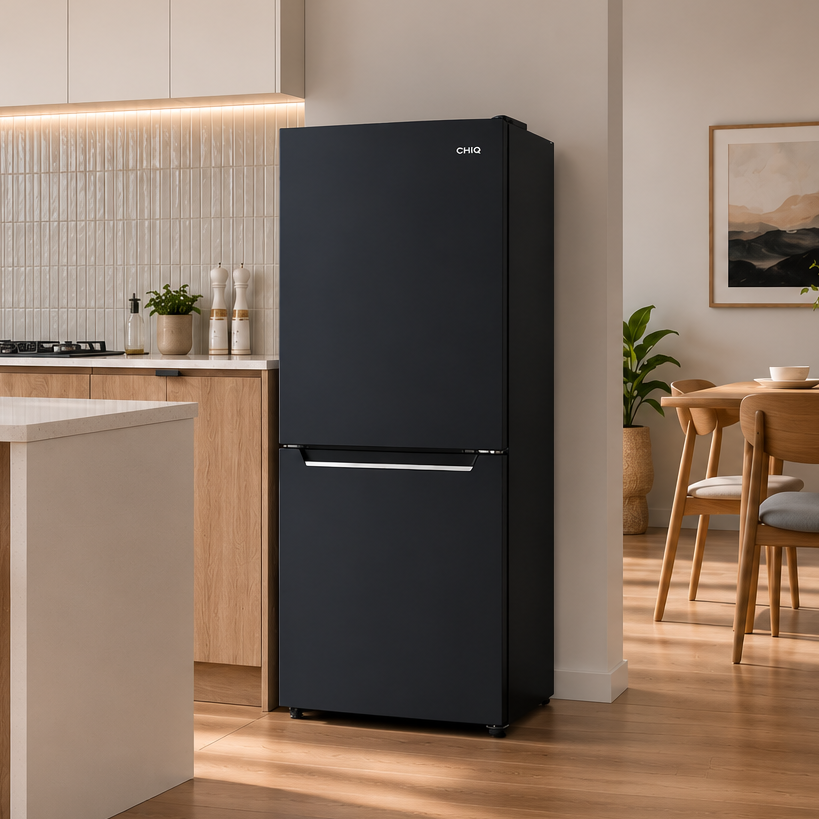

CHiQ CBM280NB5E product gallery 08.png

283L BOTTOM MOUNT FRIDGE

Everyday cooling, thoughtfully fitted

A practical 283L bottom mount with fresh food storage at a convenient height.

Even cooling throughout

Multi Air Flow distributes chilled air across the refrigerator and freezer compartments.

No manual defrosting

Total Frost Free helps prevent frost build-up.

Humidity adjusted for fresh produce

Use the integrated slider to suit fruit or leafy vegetables.

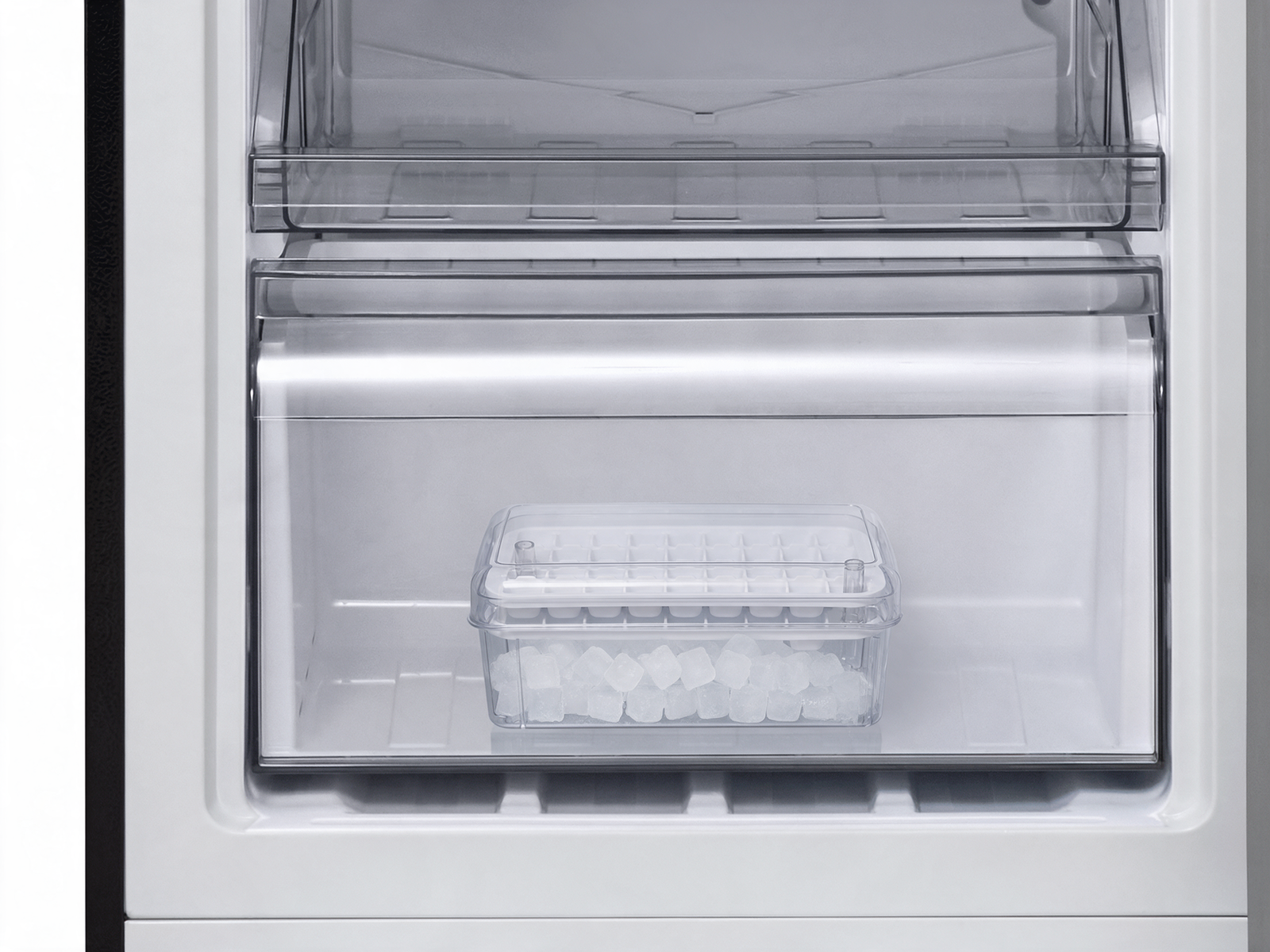

Ice within easy reach

A compact pull-forward box keeps two ice trays organised in the freezer.

Fresh food at a convenient height

The bottom-mount layout keeps everyday refrigerator storage easy to see and reach.

Fast cooling, simple control

Select Fast Cool or adjust the numbered setting from the top electronic panel.

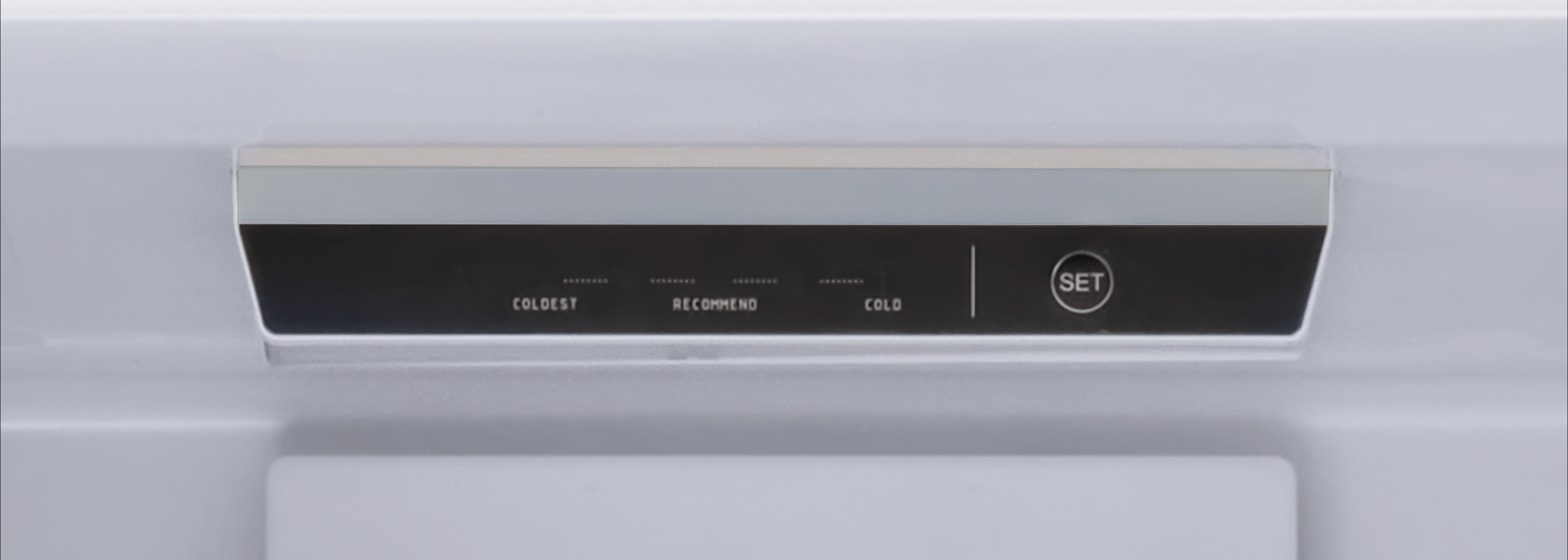

CBM280NB5E electronic control panel
  • 10-year compressor warranty*Long-term compressor cover for added peace of mind (parts only).
  • Fast CoolingQuickly cools groceries after a larger shop.
  • Electronic ControlSet the temperature easily using the electronic controls.

Flexible placement, helpful reminders

  • Interior LED LightBrightens the cabinet so stored items are easier to find.
  • Reversible DoorChoose left- or right-hand opening to suit your space.
  • Door AlarmAlerts you if the refrigerator door stays open for more than three minutes.

Top specs

See all specs
  • Capacity283L
  • Energy rating5.5 Star
  • FinishBlack
  • Dimensions (W x H x D)595 x 1520 x 671 mm
  • 283L Capacity
  • 5.5 Star Energy Rating
  • Bottom Mount Design
  • Total Frost Free
  • Multi Air Flow
  • Easy-to-get Ice Box

Full specifications

Capacity & performance
Net capacity
283L (Refrigerator 196L / Freezer 87L)
Refrigerant
R600a
Energy rating
5.5 Star
Dimensions & weight
Product dimensions (W × H × D)
595 × 1520 × 671 mm
Packing dimensions (W × H × D)
638 × 1569 × 729 mm
Net weight
54 kg
Gross weight
60 kg

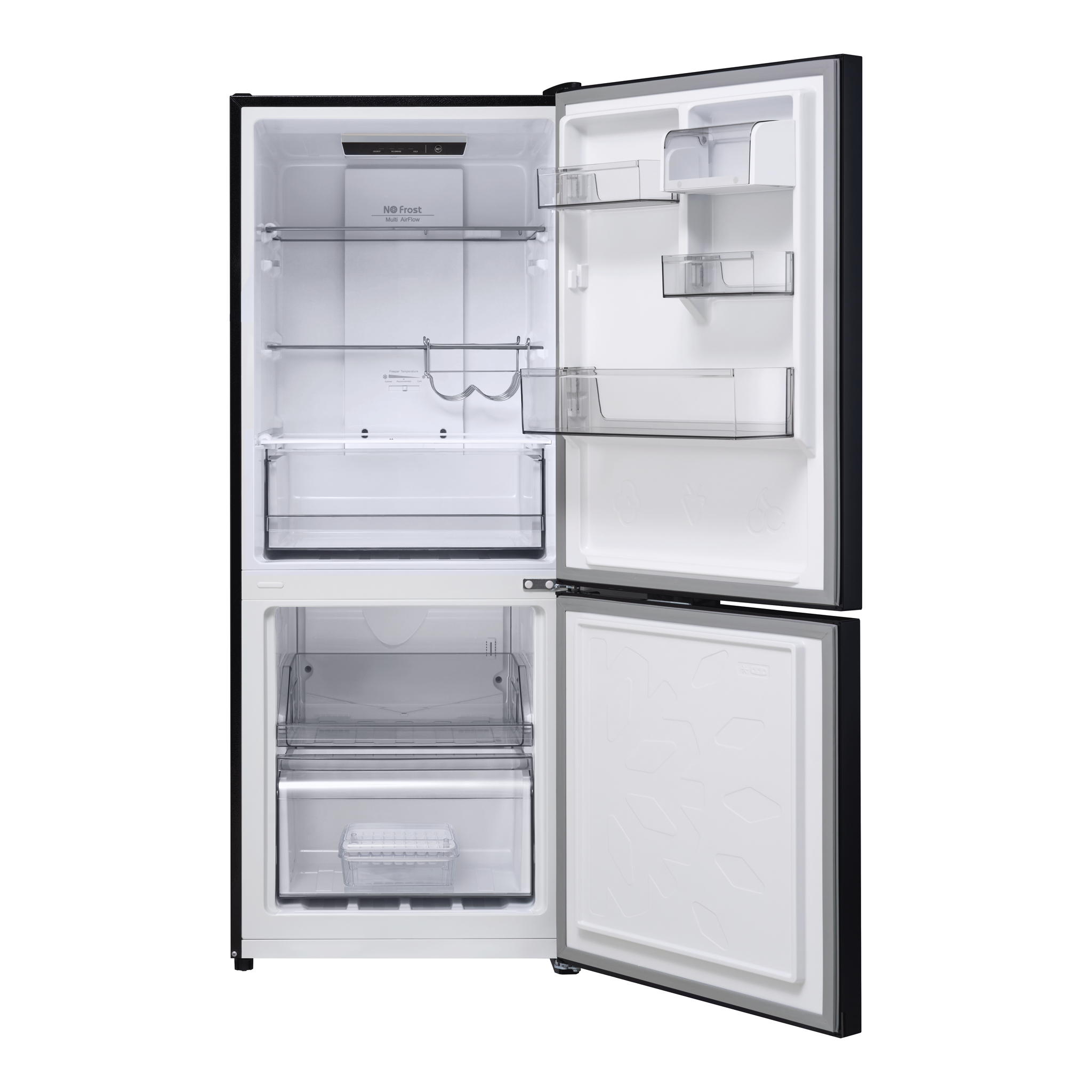

Storage
Refrigerator glass shelves
2
Door baskets
3
Butter box
1
Crisper with glass cover
1
Wine rack
1
Freezer drawer
1
Freezer tray
1
Easy-to-get ice box
1
Installation
Ventilation clearance
5 cm left and right sides; 5 cm rear
Barcode
6937555217024

Downloads

Solutions & tips

Common questions about installing, using and maintaining this product.

How much ventilation space is required?
Allow 5 cm on the left and right sides and 5 cm behind the appliance.
Does this appliance require manual defrosting?
No. Total Frost Free cooling is designed to prevent frost build-up during normal operation.
Can the door opening direction be changed?
Yes. The reversible-door design allows the opening direction to be changed; follow the user manual or use a qualified installer.

Product support

Notes & disclaimers

Specifications are current at the time of publication and may change without notice. Dimensions are nominal; allow additional clearance for connections, levelling and ventilation.

Retailer prices and availability are set independently by each retailer and may change at any time.
